SF900 Game Controller Wireless 1500games

NAME AND FUNCTIONS OF EACH PART AND INSTALLATION

HDMI PLUG

Insert to HDMI INPUT of TV set directly.

DC-IN (Micro-USB)

Connect to power supply

MicroSD SLOT

To insert a MicroSD memory card with games.

DIRECTIONAL JOYSTICK

Move to steer 8 directions as follows

SELECT(ADD COINS)

Press to select playing mode or to add coins under arcade games.

START

Press to start game play

NOTE: Press ""SELECT + START"" buttons on the controller simultaneously to call out a pop-up menu asking for options such as ""SAVE, SETTINGS, EXIT or CONTINUE"".

Y BUTTON. function may vary under different game

X BUTTON: function may vary under different game.

B BUTTON function may vary under different game.

10A BUTTON function may vary under different game

L BUTTON: function may vary under different game.

12 R BUTTON function may vary under different game.

13P1/P2 SWITCH: Toggle to define the controller as P1 or as P2 (NOTE: it's NOT a ON/OFF power switch)

BATTERY INSTALLATION

Use a screwdriver to open the battery covers of two wireless controllers.

Insert AAA batteries for each controller correctly by following the polarity indicated inside the battery compartment.

Close and screw up the battery cover firmly.

WARNINGS! Please remove the AAA batteries out of the controller if they will not be used for a long period and store them in a cool dry place

START TO USE

Please follow below steps to start game play.

1) Insert the mini HDMI console directly to HDMI input of TV set. Or connect it to TV via a HDMI extension cable

2) Connect one end(Micro-USB plug) of USB cable to the mini HDMI console and the other end of USB cable to any 5V electric power source such as USB port on TV set, mobile phone charger, power bank or electrical outlet with USB etc.3) Turn on TV set and switch the TV source to be HDMI input. (If the TV has more than one HDMI input,please remember to switch the source corresponding to the HDMI input with mini console connected.)

4) Install batteries of each controller following the BATTERY INSTALLATION guide above.

5) Press any key on the controller to activate as it has auto power sleep function.

6) Scroll the directional joystick on controller P1 to select the desired game and press ""START"" or ""A"" sometimes to enter the game and enjoy your playing.

7) Press ""SELECT + START"" buttons on the controller simultaneously to call out a pop-up menu asking for options such as ""SAVE SETTINGS, EXIT or CONTINUE"".PLEASE READ THROUGH THIS INSTRUCTION MANUAL COMPLETELY BEFORE USE AND KEEP IT WELL FOR FUTURE ASSISTANCE WHENEVER REQUIRED.

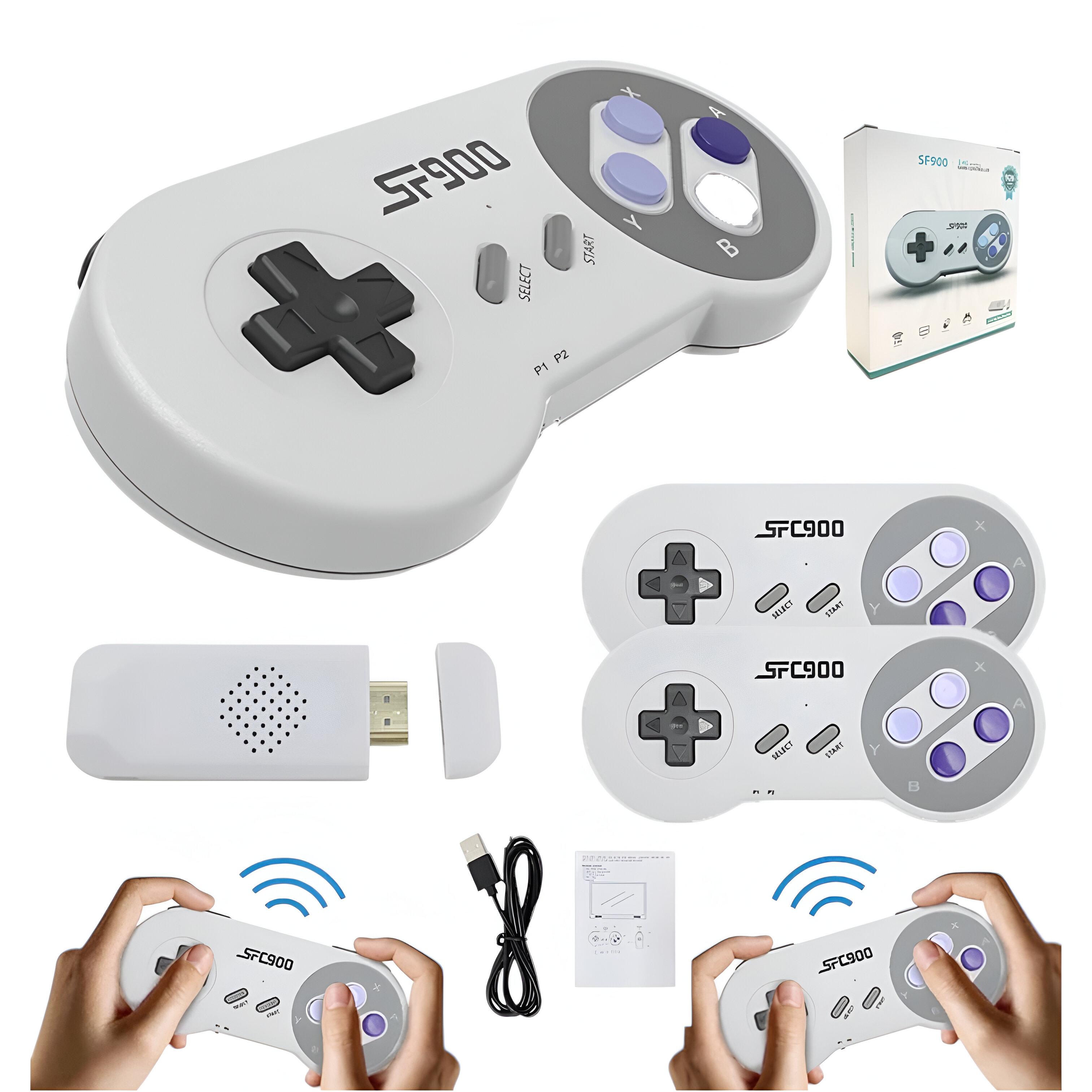

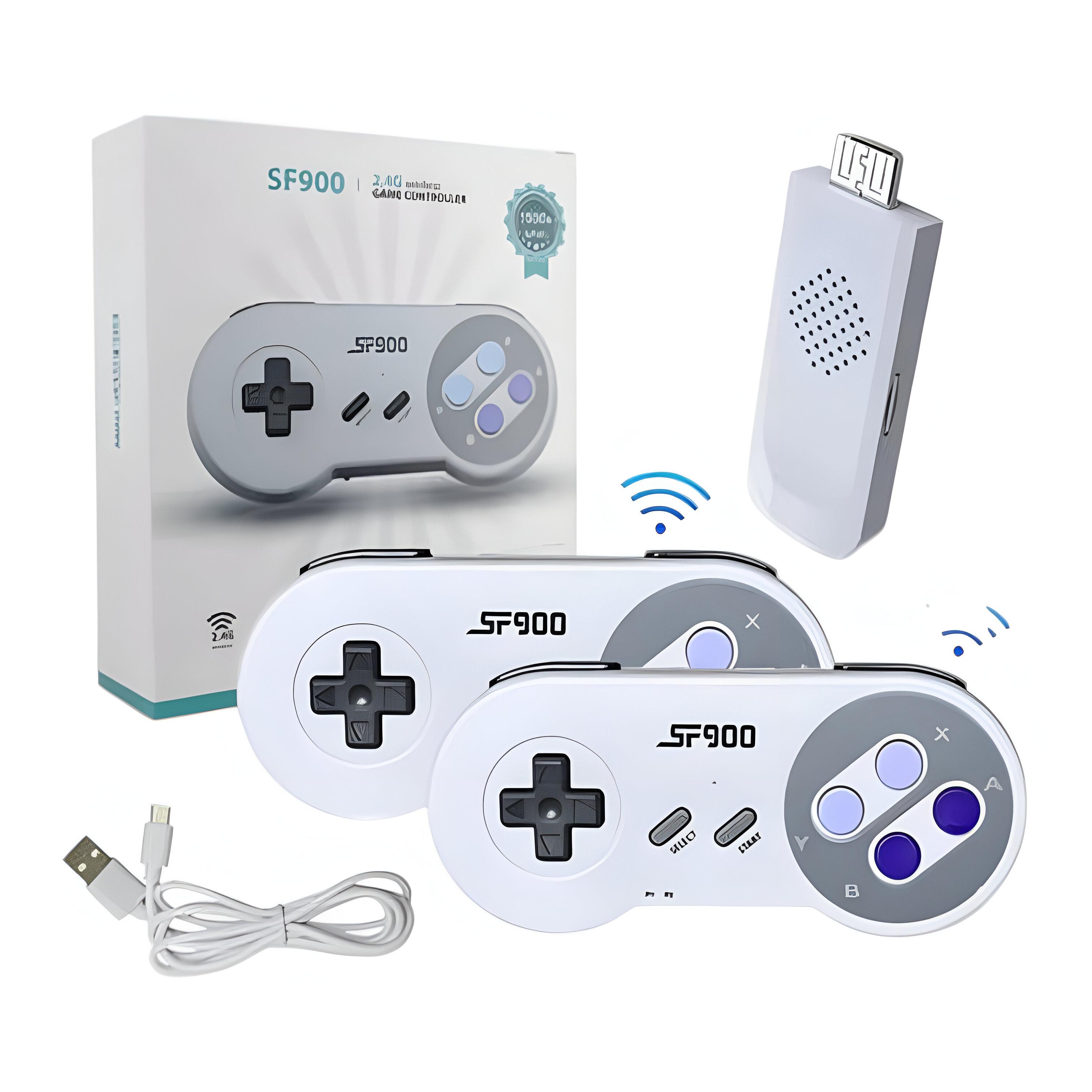

PACKAGE CONTENT

1 X MINI HDMI CONSOLE

2 X WIRELESS CONTROLLERS

1 X 1G MICRO-SD CARD

1 X USB CABLE

1 X MANUAL
