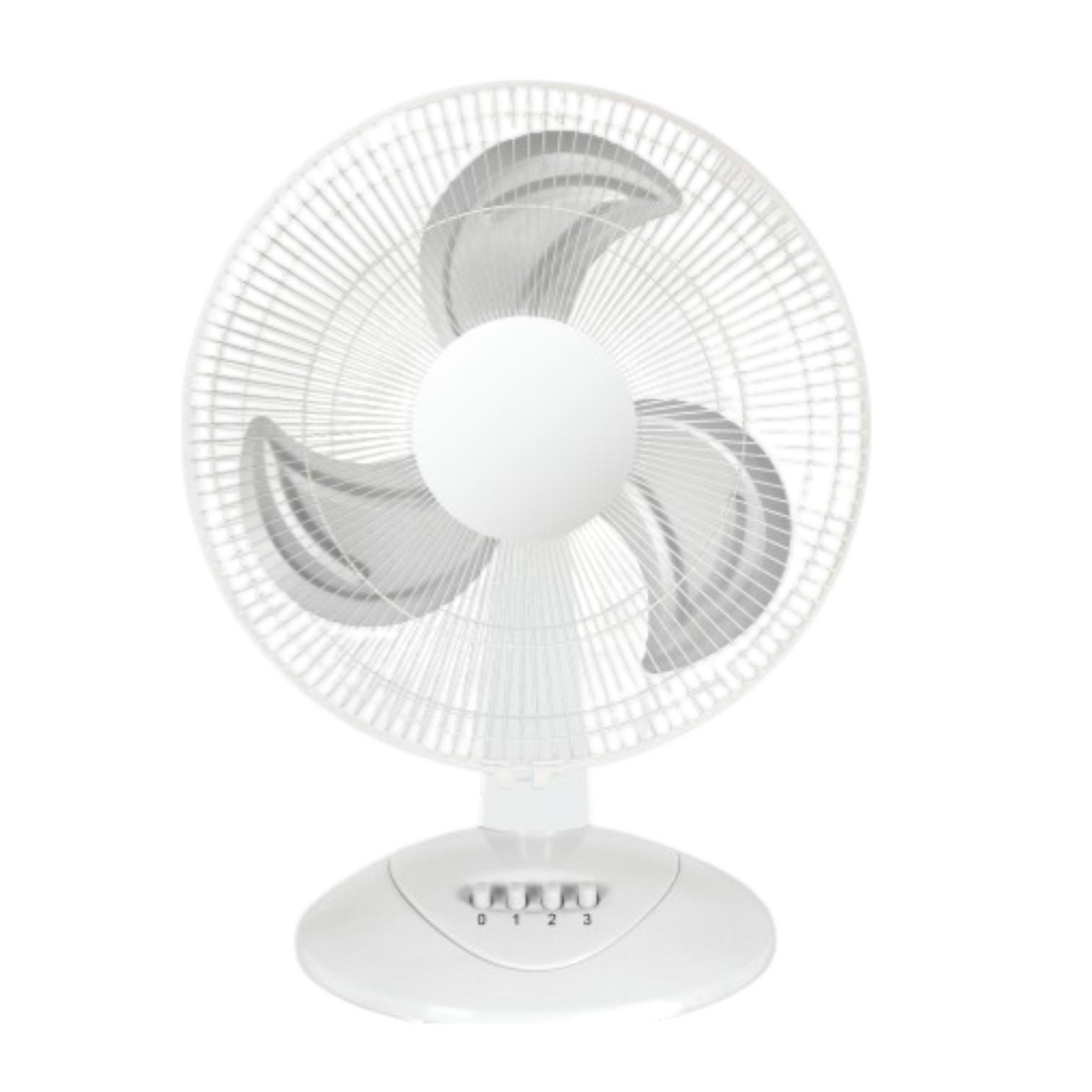

MIRALUX TABLE FAN 16 INCH

Stay cool and comfortable with the MIRALUX 16-Inch Table Fan—your go-to solution for beating the heat with style and efficiency. Whether you're working, relaxing, or sleeping, this fan delivers a refreshing breeze with quiet operation and adjustable settings to suit your needs.

220-240V 50-60Hz
Power: 55W
Qty: 1PCS/CTN
16"""" TABLE FAN
Up & Down Tilt Mechanism
Motor Protection Thermal
Overload Protection Devise
90-Degree Oscillation
3-Speed Switch Control
Extra Protection Against Corrosion With Powder-Coated Guard & Polymer Ring
Aerodynamically Designed metal Blades For High Air Delivery. FULL90° OSCILLATION, 3 SPEEDS, METAL BLADE
430*250*530mm
CAUTION
Read Rules for Safe Operation and Instructions Carefully.

WARNING:
1. Keep electrical appliances out of reach from Children or infirm persons. Do not let them use the appliances without supervision.
2. Ensure that the fan is switched off from the supply mains before removing the guard.
3. If the supply cord is damaged, it must be replaced by manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

RULES FOR SAFE OPERATION:
1. Do not leave the fan running unattended.
2. Never insert fingers, pencils, or any other object through the grille when fan is running.
3. Disconnect fan when moving from one location to another.
4. Disconnect fan when removing grilles for cleaning.
5. Be sure fan is on a stable surface when operating to avoid overturning.
6. DO NOT use fan in window. Rain may create electrical hazard.
7. Complete the assembly of the fan before switching on the fan.

ASSEMBLY OF BLADE OF GRILLES:
1. Unscrew the spinner clockwise and the nut counter-clockwise then remove both of them.
2. Set the rear grille in the proper position with handle up.
3. Screw on plastic nut tightly to attach rear guard.
4. Discard plastic sleeve on motor shaft.
5. Install the blade onto the motor shaft until it reaches the retaining pin.
6. Screw spinner on to motor shaft counter clockwise.
7. Unscrew the locking screw mounted on the rear grille.
Mount front grille onto rear grille with the small round holes on the top matched for the passage of locking screw. Fix both grilles with clips and then use screwdriver to tighten the locking screw.

ASSEMBLY OF BASE:
1. Detach screw from base of the fan.
2. Match locking lug to base.
3. Tighten the screw from the base to lock the fan and base.

OPERATING INSTRUCTIONS:
1. To make / stop the fan head oscillate, push down/pull the clutch knob.
2. To adjust the airflow upward or mild downward, simply loosen the Swivel Adjustment Knob and move to desired angle then firmly tighten the Swivel Adjustment Knob.

3. Speed is controlled by depressing the piano keys.

4. Plug the power supply cord into a wall outlet.

CLEANING
1. Be sure to unplug from the electrical supply source before cleaning.
2. Plastic parts should be cleaned with mild soap and a damp cloth or sponge. Thoroughly to remove soap film with clean water.
3. Be sure not to make water or other liquid enter inside of motor.
