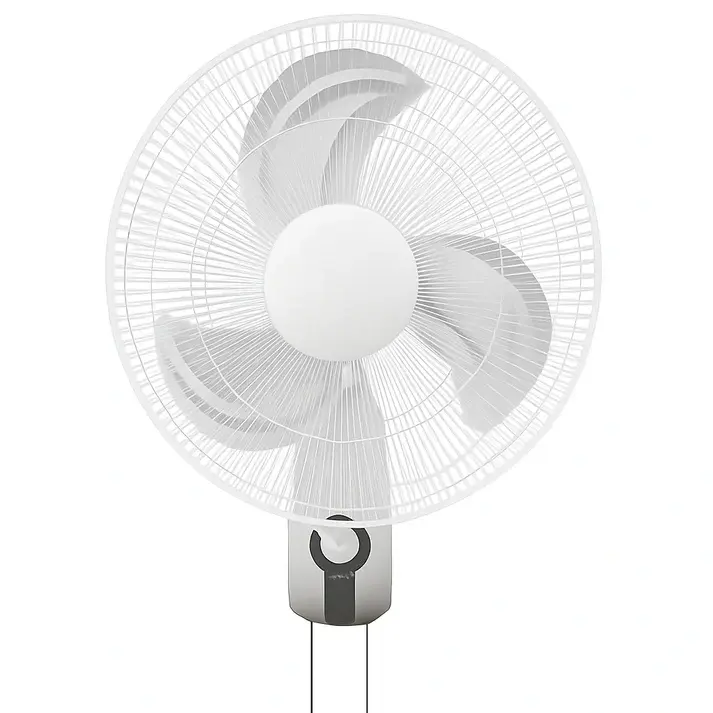

MIRALUX WALL FAN 16 INCH 60W

The MIRALUX 16-inch Wall Fan is your perfect partner for beating the heat. With a powerful 60W motor and wide oscillation, it delivers a strong, steady breeze that cools your space efficiently. Whether it’s your bedroom, office, or shop, this fan saves floor space while keeping the air fresh and moving.
220-240V 50-60Hz
Power: 60W
Qty: 1PCS/CTN
16"""" WALL FAN
Up & Down Tilt Mechanism
Motor Protection Thermal
Overload Protection Devise
90-Degree Oscillation
3-Speed Switch Control
Extra Protection Against Corrosion With Powder-Coated Guard & Polymer Ring
Aerodynamically Designed metal Blades For High Air Delivery
*Miralux*:
ELECTRIC WALL FAN
A. PARTS DIAGRAM
MODEL: MWF-208
MOTOR SHAFT
MOTOR FRONT COVER:
1 Front Guard
2 Blade Cap
3 Fan Blade
4 Rear Guard Mounting Nut
5 Rear Guard
6 Motor
7 Oscillating Pin
8 Swivel Joint
9 Rear Cover
10 Switch
11 Power Cord
12 SIZE- 430*350*550mm
B. ASSEMBLING INSTRUCTIONS:
1. Unscrew the screw on the edge of the rear grille.
2. Unscrew the Blade Cap by turning clockwise & Guard Lock Nut by turning anti-clockwise.
3. Mount the Rear Guard to the Motor by matching the 3 holes on the Rear Guard to the 3 rounf pins on the Motor Front Housing. Push firmly until pins protrude through the 3 holes.
4. Secure the Rear Guard to the motor housing with GuardLock Nut.
5. Insert the Blade onto Motor Shaft by matehing slots in the Blade with pin in shaft the and tighten the Blade with Blade Cap by turning anti-clockwise.
6. Test Blade by rotating with your hand. Make sure there is no friction with Guard Lock Nut. Blade should rotate freely. Otherwise repeat steps again from STEP 1.
7. Mount Front Guard onto Rear Guard by inserting Rear Guard& secure Clips on Front Guard.
8. Tighten the screw on the edge of the rear grille through FronT
OPERATING INSTRUCTIONS:
1. To make a vertical angle adjustment first pull the oscillating pin up then select your desired angle to tilt adjustment knob.
Tilt Adjustment Knob:
2. Pull the cord for selecing speed(Hi-Med-Low-off)
3. Pull the cord for oscillating(ON-OFF)
FIG. B pull cord for speed
screw Mounting Plate
wall """"}
4.Min. Height 2m

D. INSTALL THE FAN ON THE WALL:
1. Install the mounting plate on wall by using three screw as provided. (see fig.B)
2. Hang the fan onto the mounting plate.
3. Make electrical connections to the power source.

CAUTION:
Read Rules for Safe Operation and Instructions Carefully.


WARNING:
1. Do not leave the fan running unattended.
2. Keep electrical appliances out of reach from Children or infirm persons. Do not let them use the appliances without supervision.
3. Ensure that the fan is switched off from the supply mains before removing the guard.
4. If the supply cord is damaged, it must be replaced by manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
5. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction conceming
use of the appliance by a person responsible for their safety. 6. Children should be supervised to ensure that they do not play with the appliance.

RULES FOR SAFE OPERATION:
1. Never insert fingers, pencils, or any other object through the grille when fan is running.
2. Disconnect fan when moving from one location to another.
3. Disconnect fan when removing grilles for cleaning
4. Be sure fan is on a stable surface when operating to avoid overturning
5. DO NOT use fan in window, rain may create electrical hazard
6. Indoor use only.
